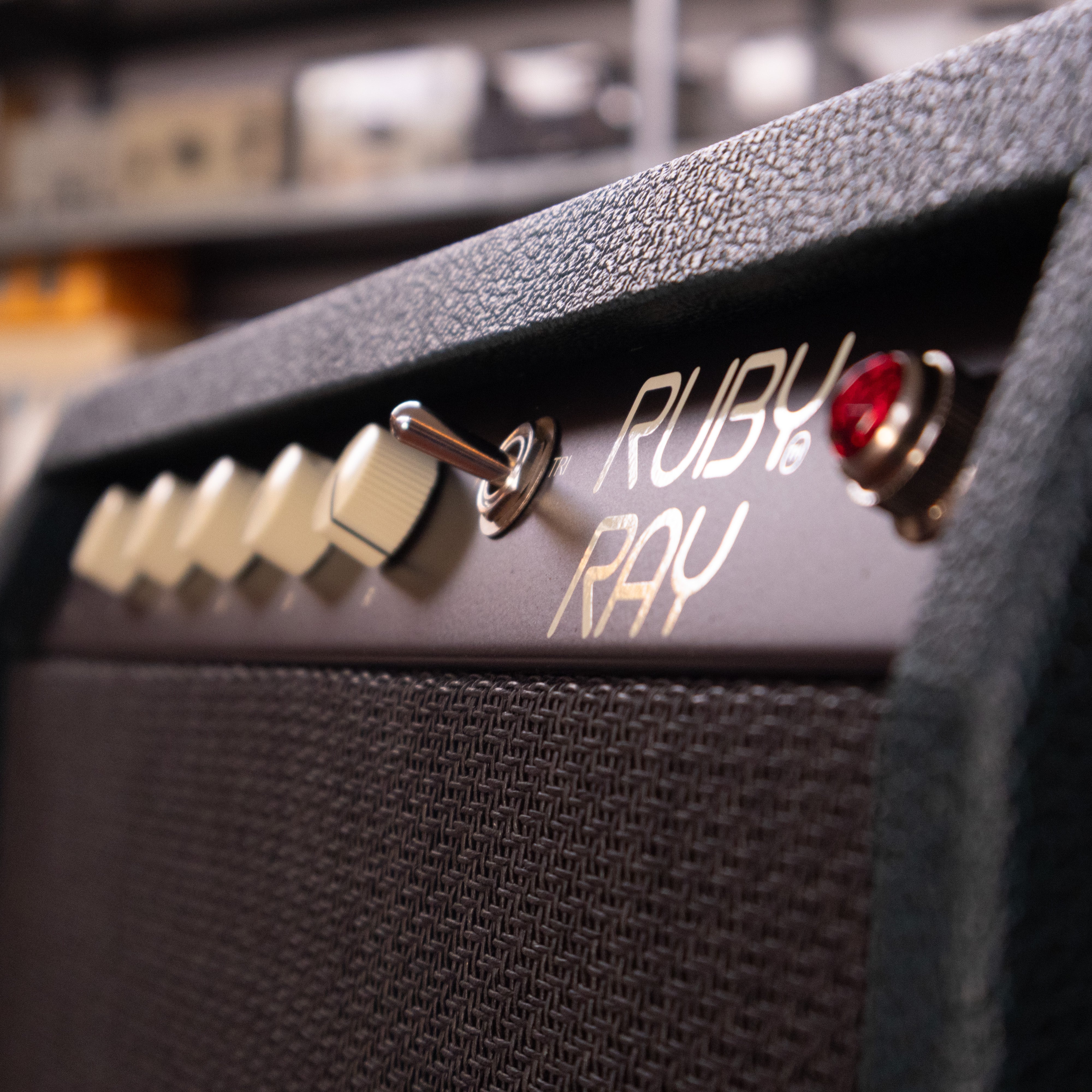

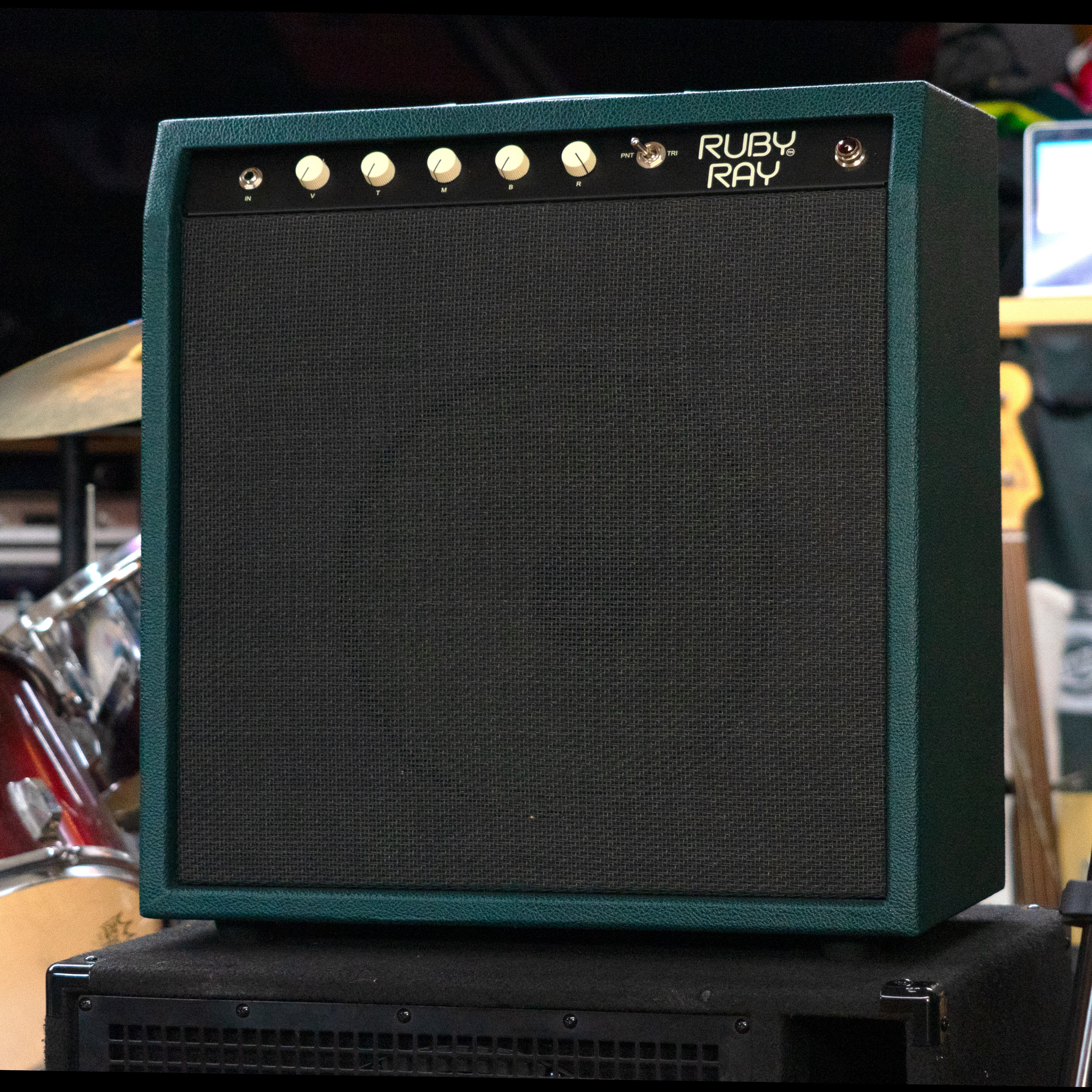

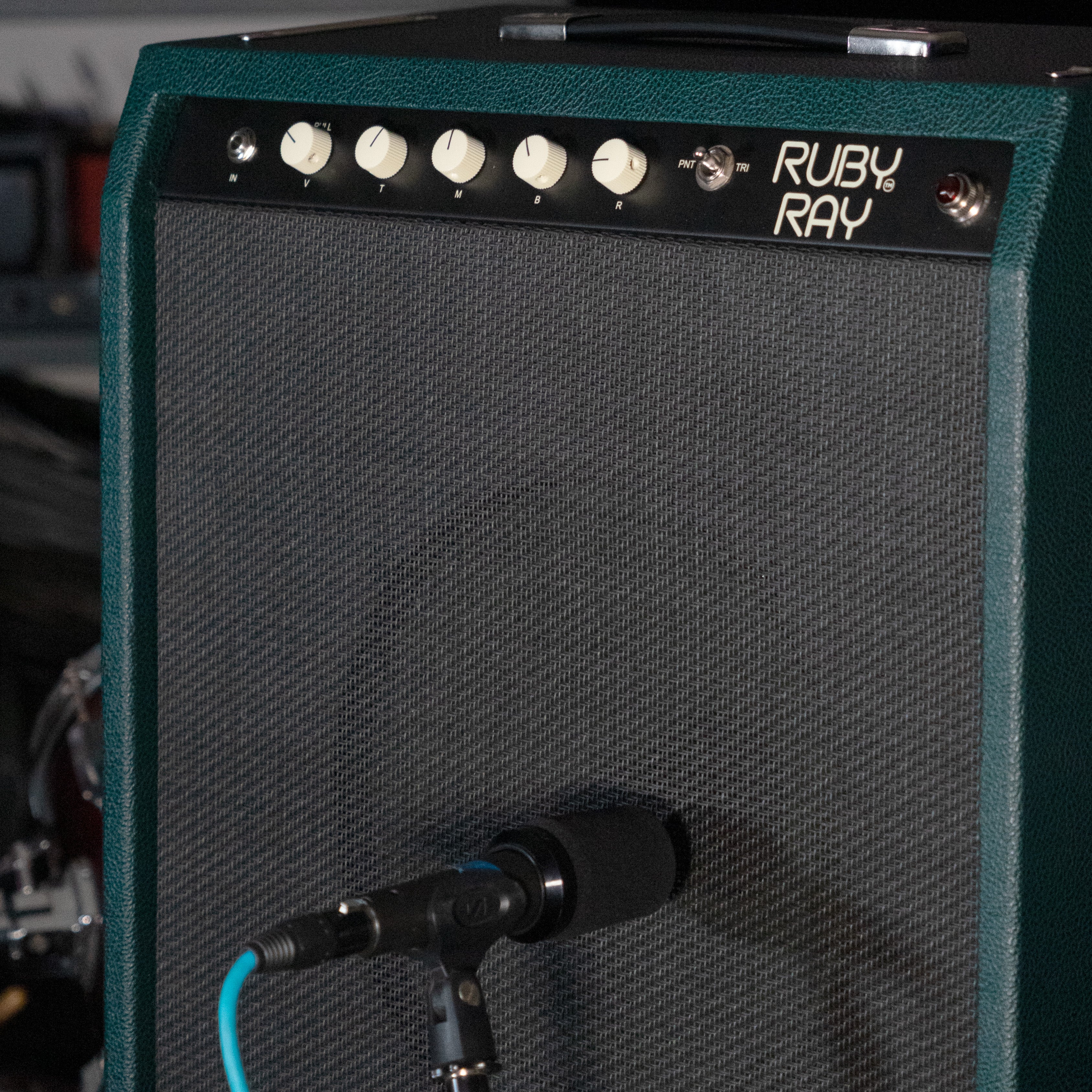

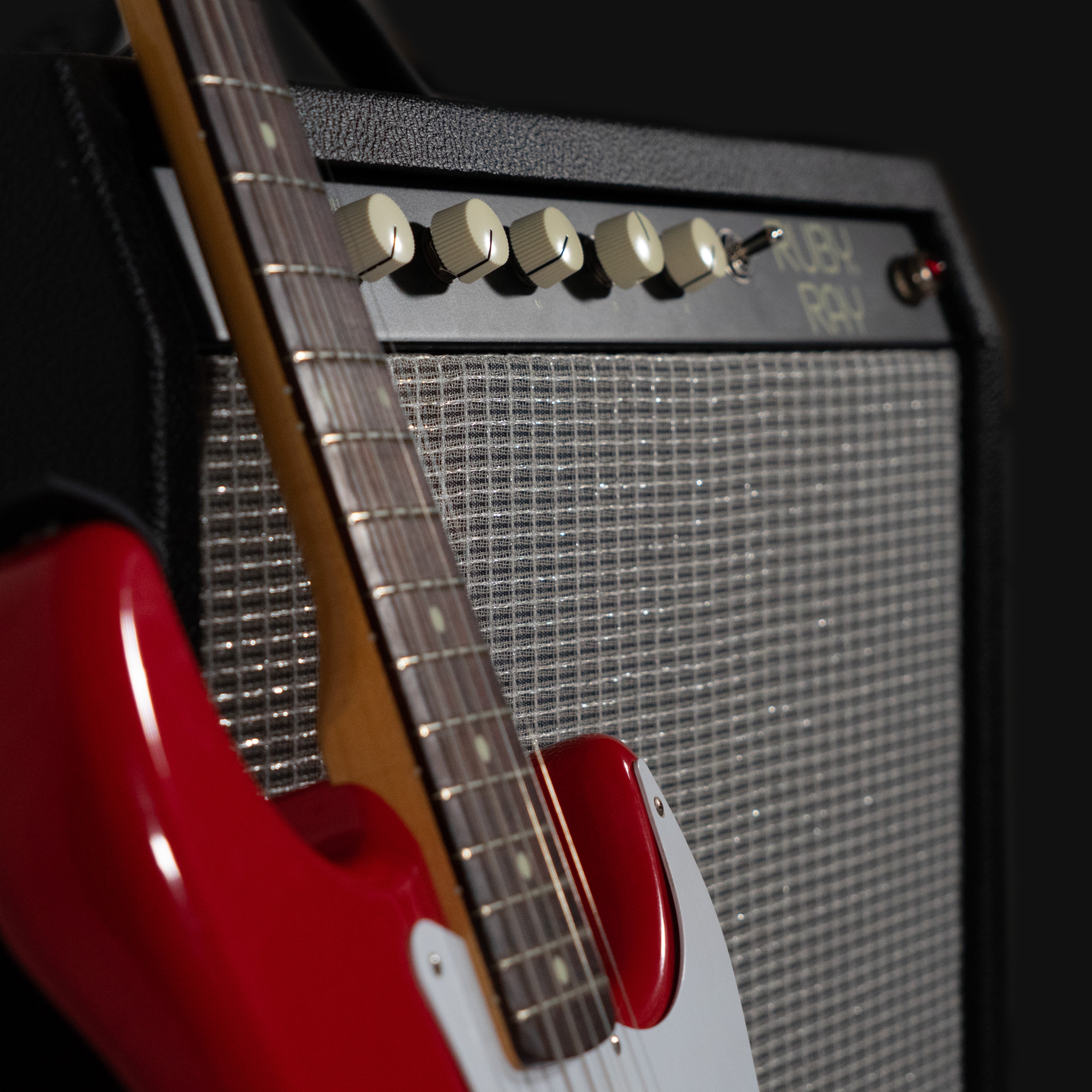

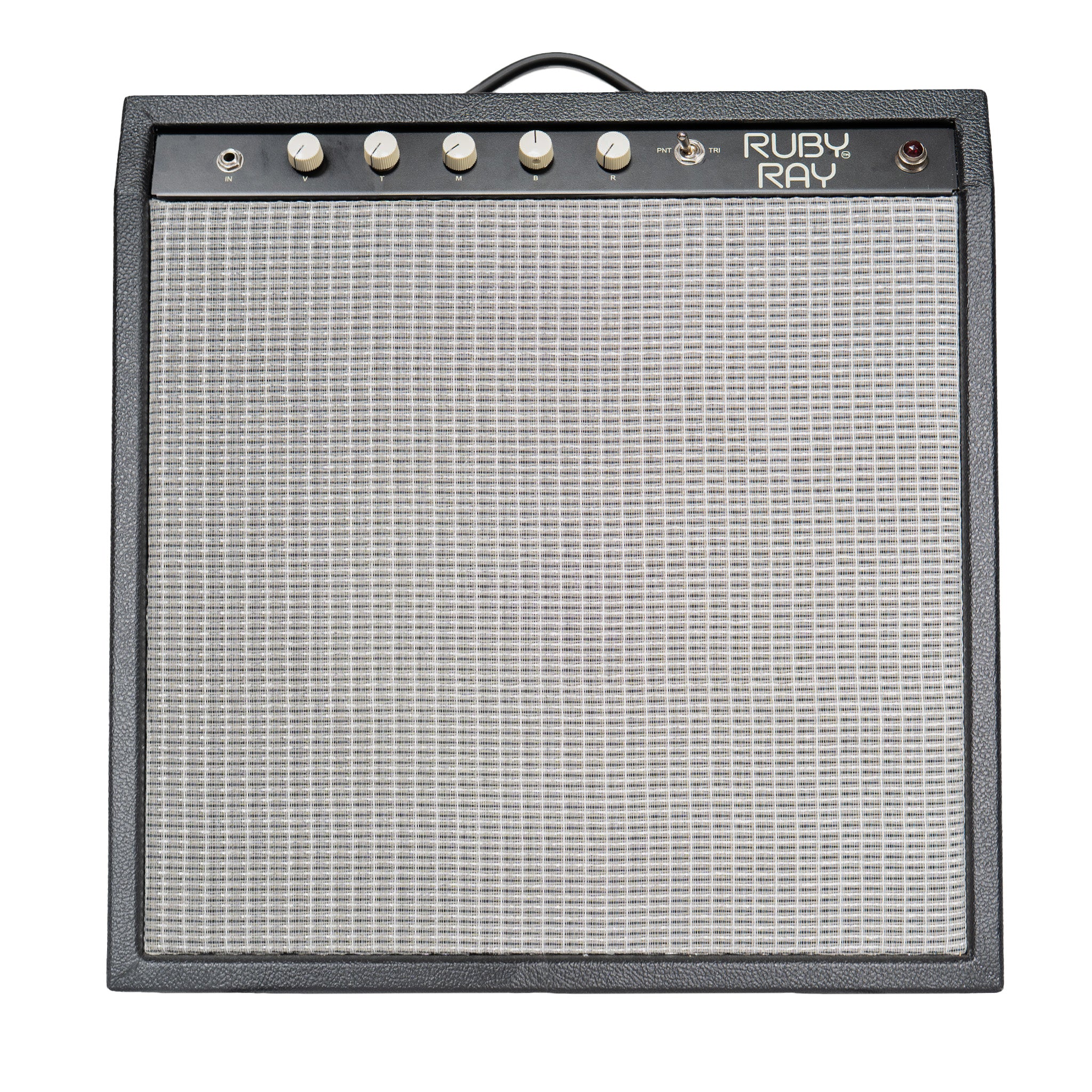

RUBY Ray Guitar Amplifier
The RUBY Ray Amplifier delivers exceptional sound clarity and power for musicians seeking superior amplification. Crafted with precision, this amplifier enhances tonal richness and dynamic response, making it ideal for both studio recording and live performances. Its robust construction ensures durability, while intuitive controls provide seamless adjustments to suit various playing styles. Whether you're a professional guitarist or an avid enthusiast, the RUBY Ray Amplifier offers reliable performance and a distinctive sound that elevates your musical expression. Experience the perfect blend of innovation and craftsmanship with this expertly engineered amplifier.
Note from RUBY Ray Amp designer Dave Ray:

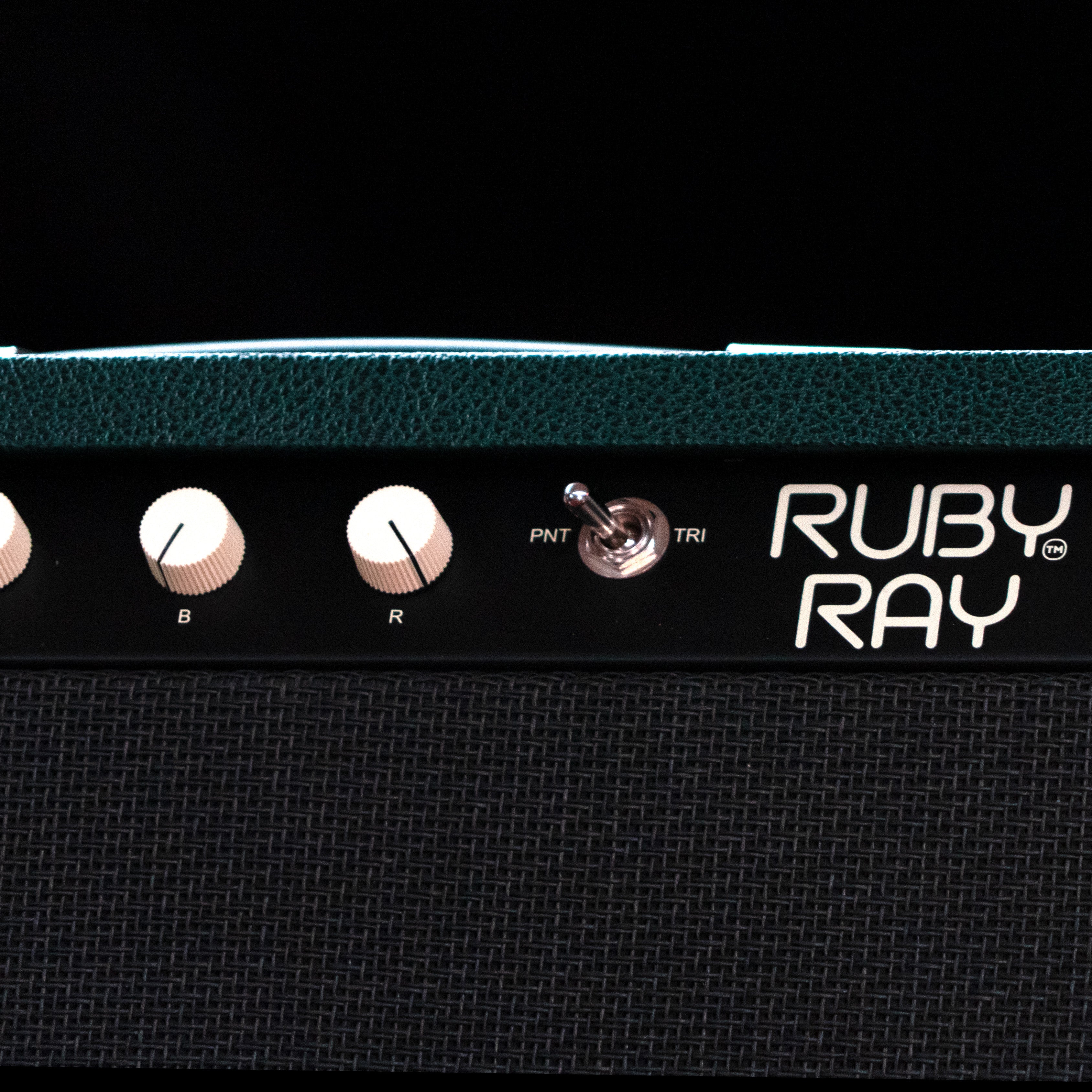

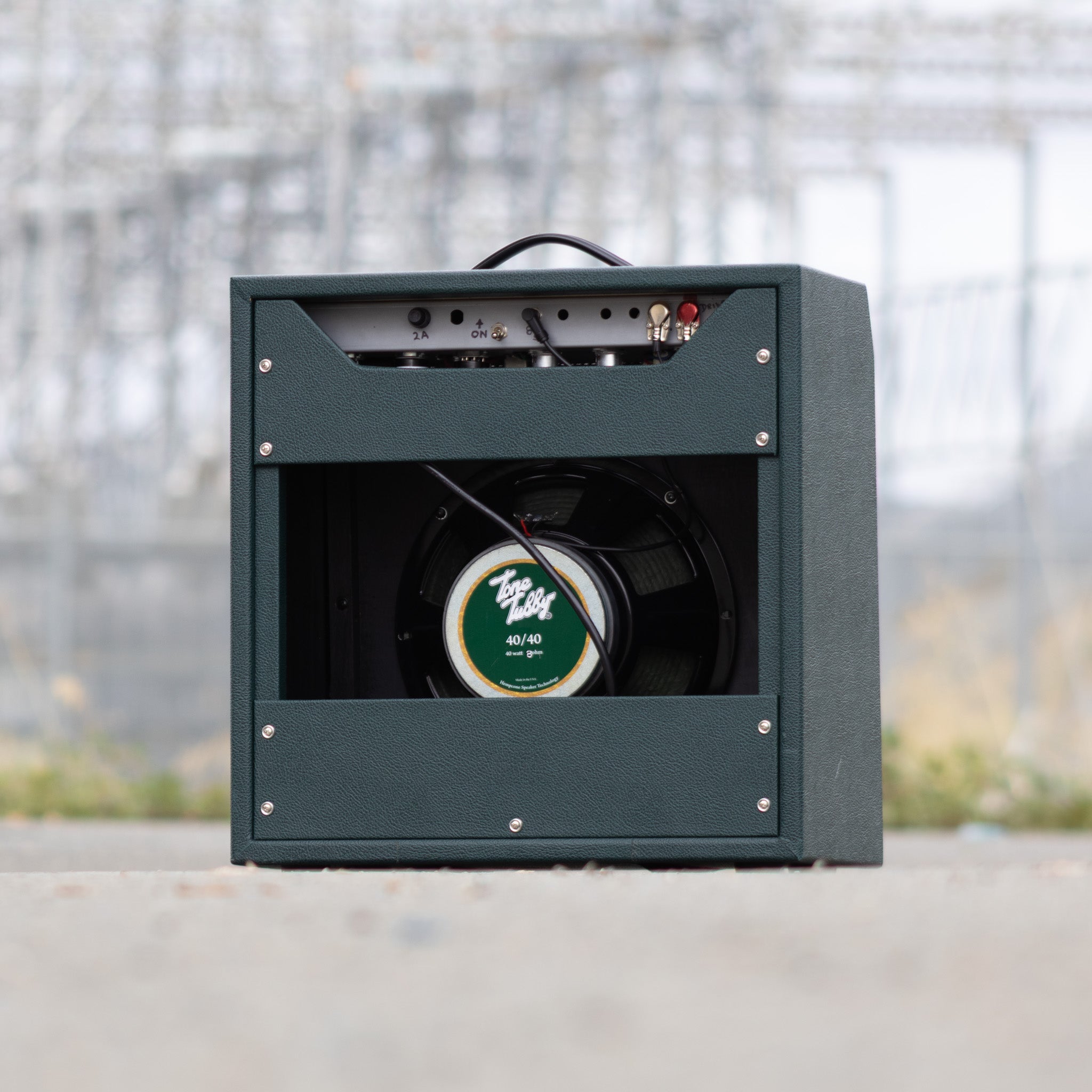

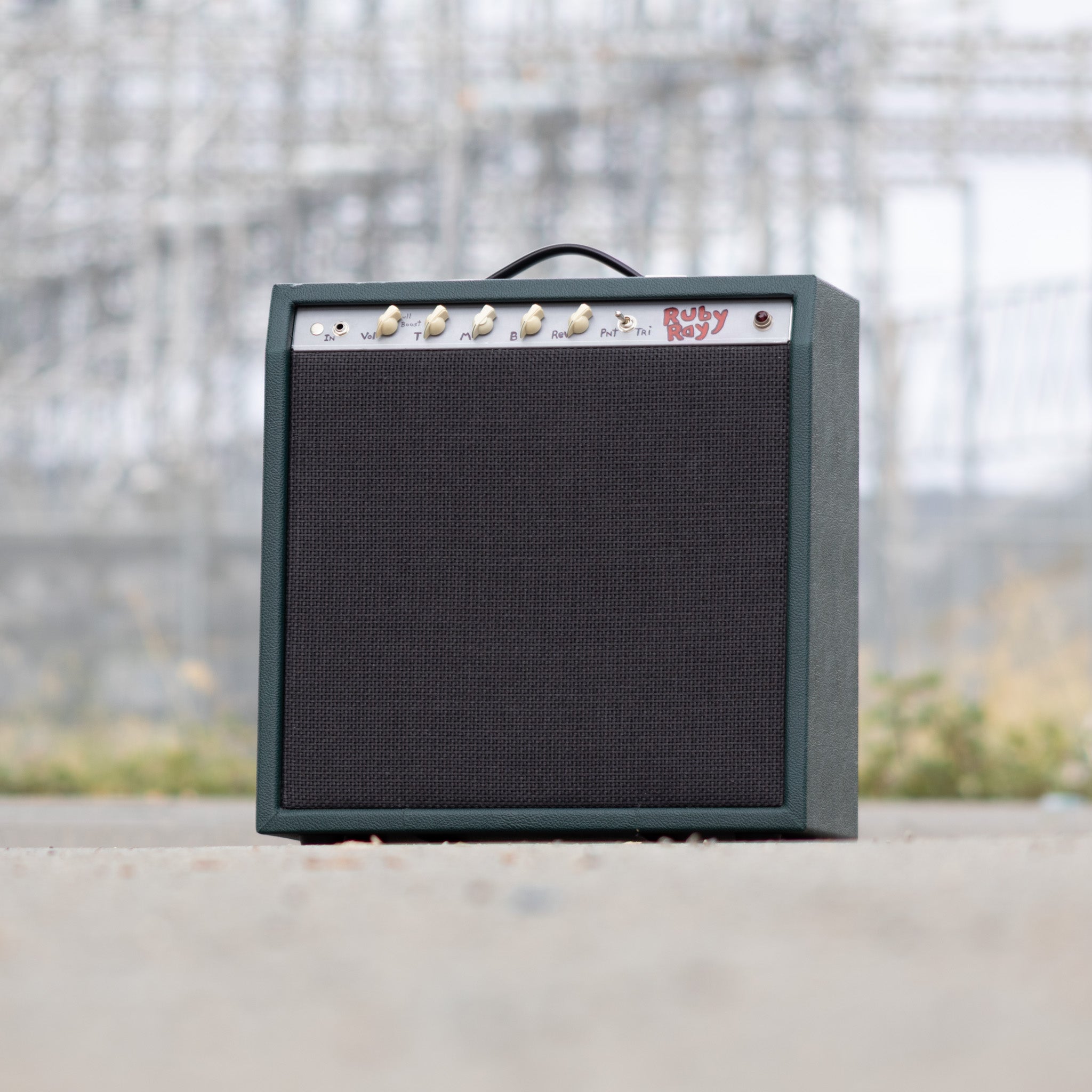

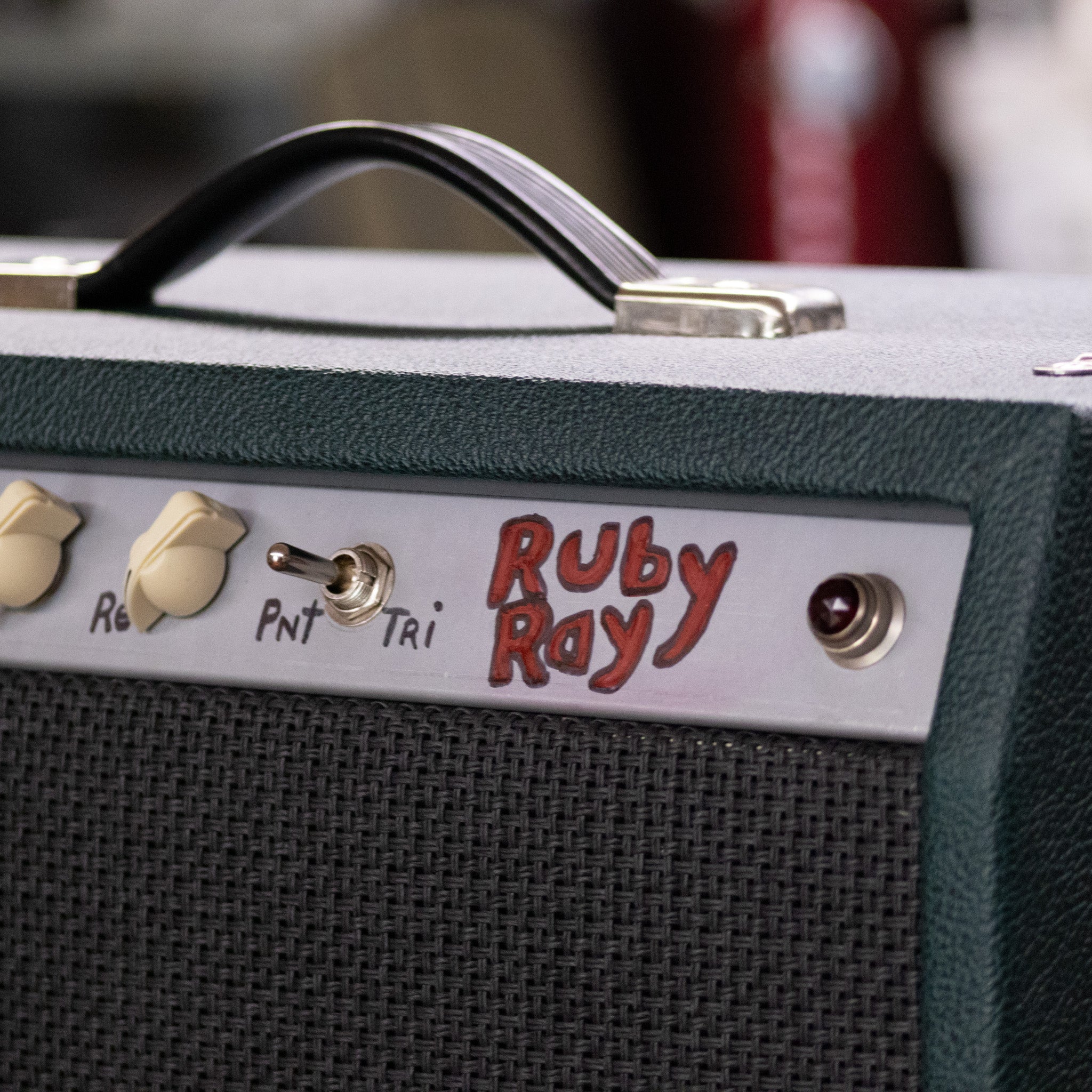

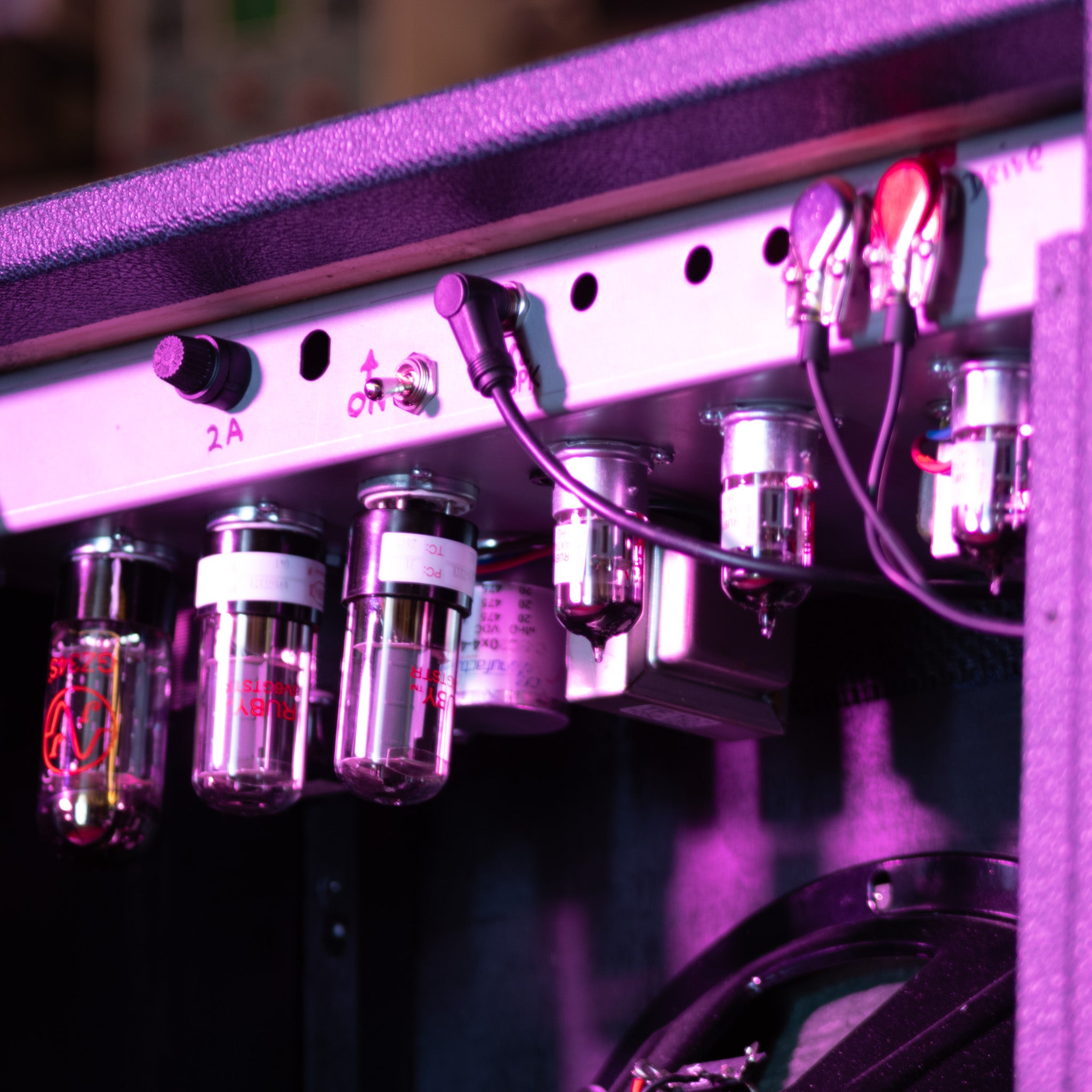

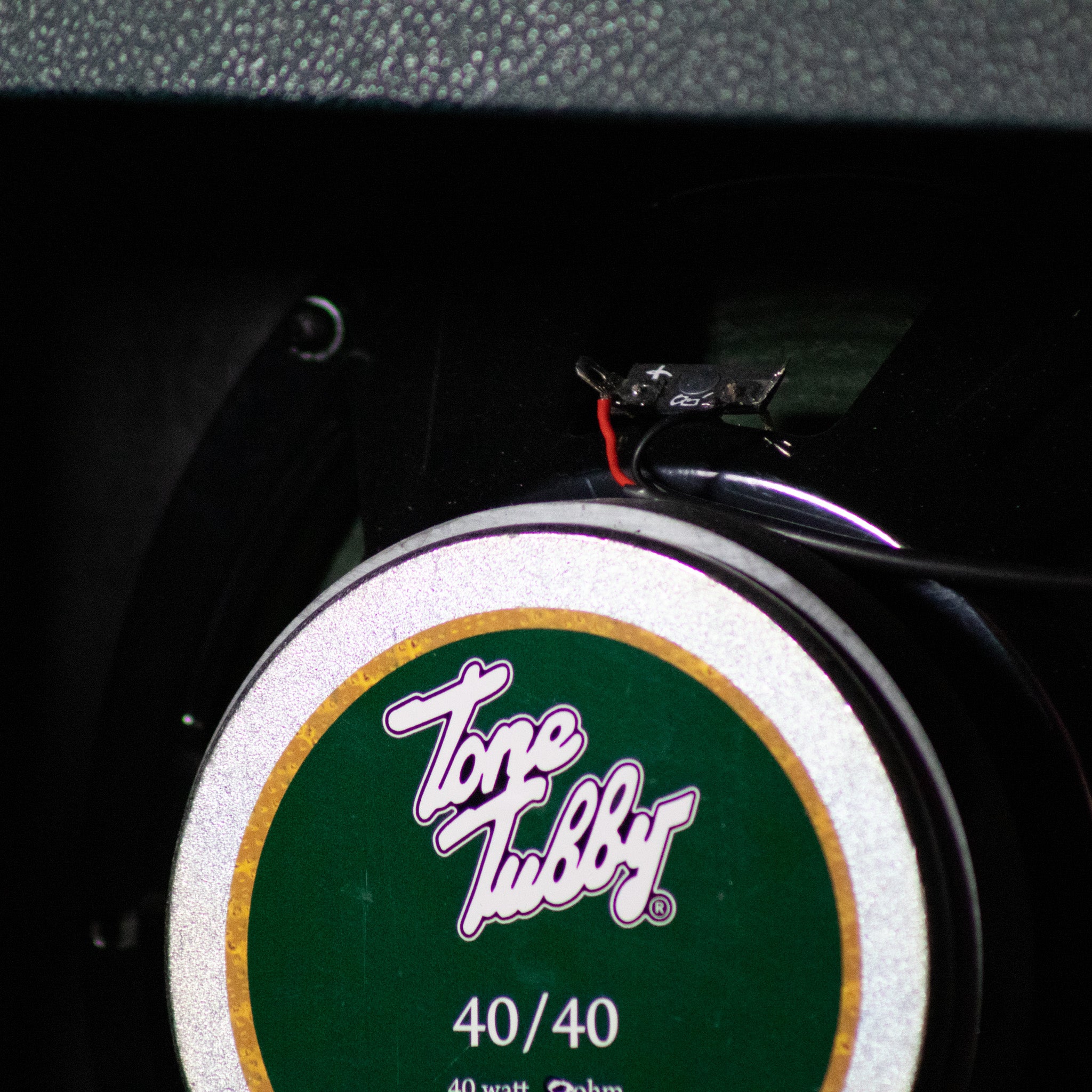

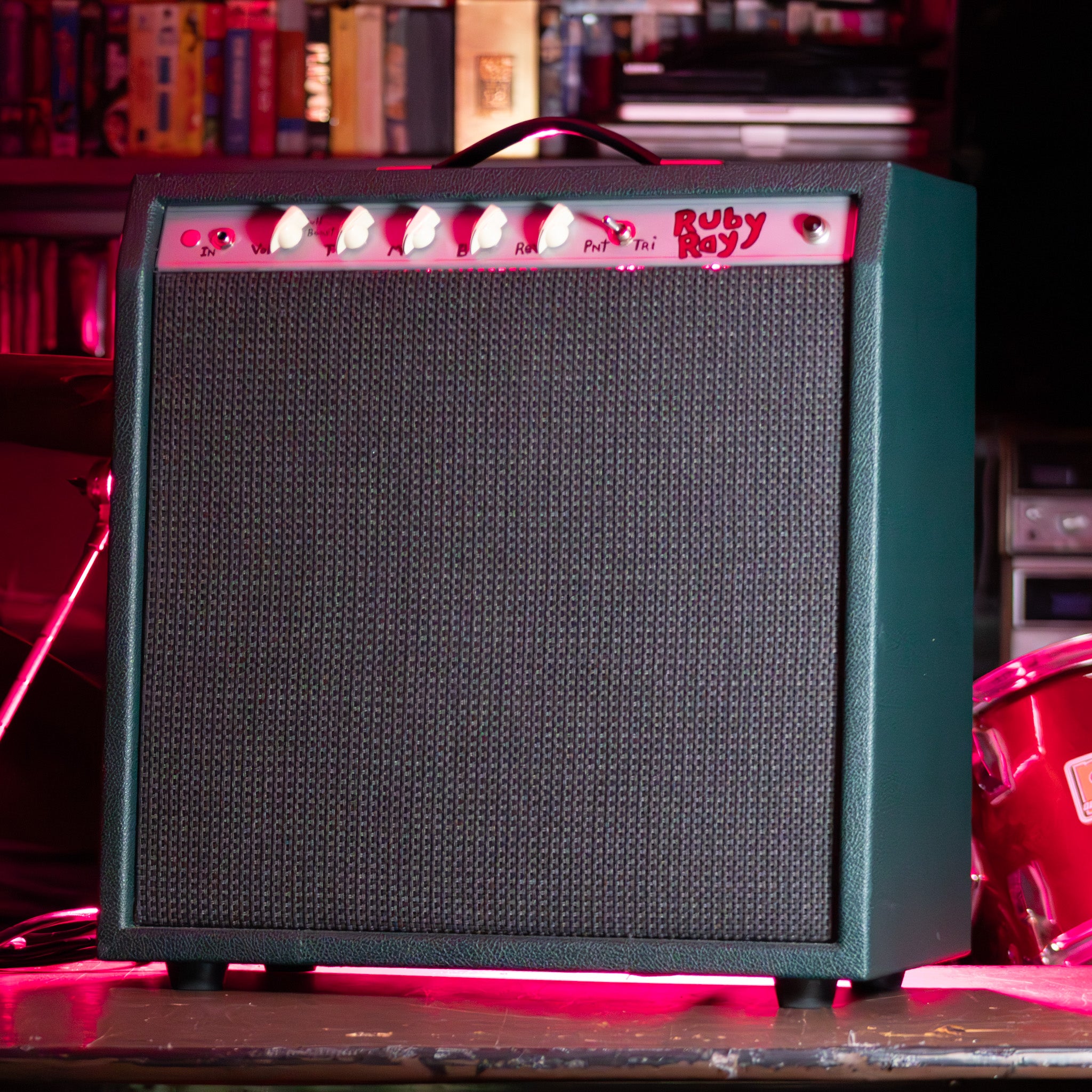

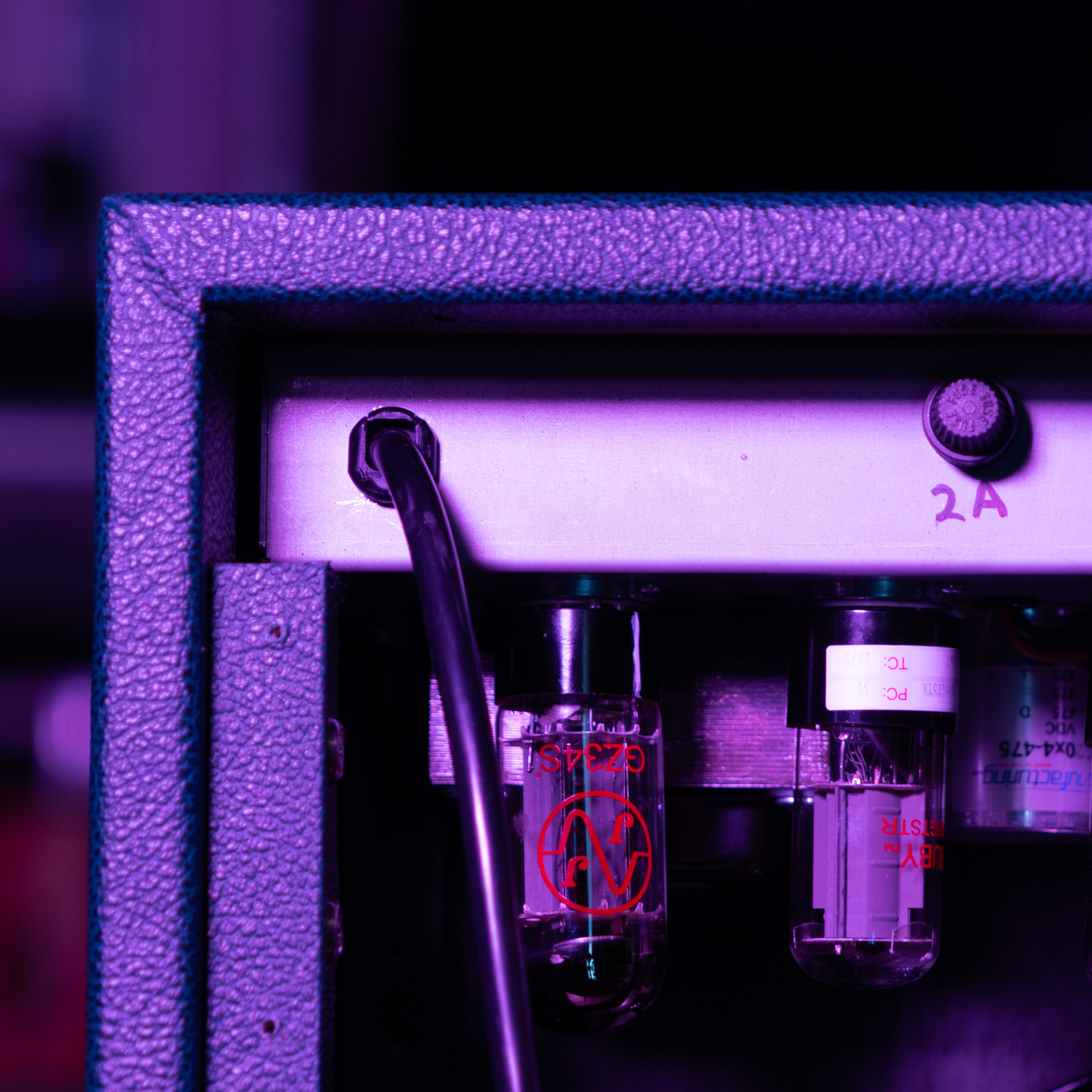

"My plan was to design a simple amp that employs multiple, subtle features that would enhance the true beauty of the electric guitar and not be a clone of an existing amp. The Ruby Ray is an all tube 20 watt/8 watt single channel amp with a full size Reverb Tank driving a 12" Tone Tubby hemp cone speaker. For many years, I have been customizing amps for guitar players in the San Francisco Bay Area and have learned how to enhance circuitry and allow the true beauty of the Guitar to come through. The first preamp stage employs a 12AX7 tube with several slight changes that optimizes the relationship between the Guitar Pickup's inductive reaction and the tube and also yields a subtle compression. The Reverb circuit employs tube drive and a full size Reverb Tank as well as some EQ changes to yield a richer reverb effect. The Tone Circuit is Fender-like but employs a finely tuned "Mid-Shift" pull switch on the Volume control that gives the amp a more early "Blues" tone. The Tone Circuit is driven by a "Cathode Follower" buffer stage and is located deeper within the preamp stages giving the EQ a more dramatic response. The Volume control has a "compensation" circuit that allows the Guitar to have it's "magic" at low volume levels. The Output Section is a unique "push/pull" 6V6 circuit that employs a 15% Cathode Bias in conjunction with an adjustable "fixed bias" which gives this circuit a unique sweetness. There are also "spike-suppression" diodes on the Plates of the 6V6 tubes which eliminates harsh overtones when these tubes are overdriven. We also have a "Pentode/Triode" toggle switch which allows the 6V6 tubes to be run in standard "Pentode" mode (20 watts) or "Triode" mode (8watts) which gives the sweetness of Class A. The Power Supply uses the GZ34/5AR4 Rectifier tube with a 5% buffering resistor and medium filtering—all designed to create a "soft" B+ High Voltage supply to give the amp natural compression. All of these features put this little amp in a class by itself. Many guitar players who have played through the Ruby Ray truly love it and immediately requested: "Save One for Me"."
New overlay design coming soon.
