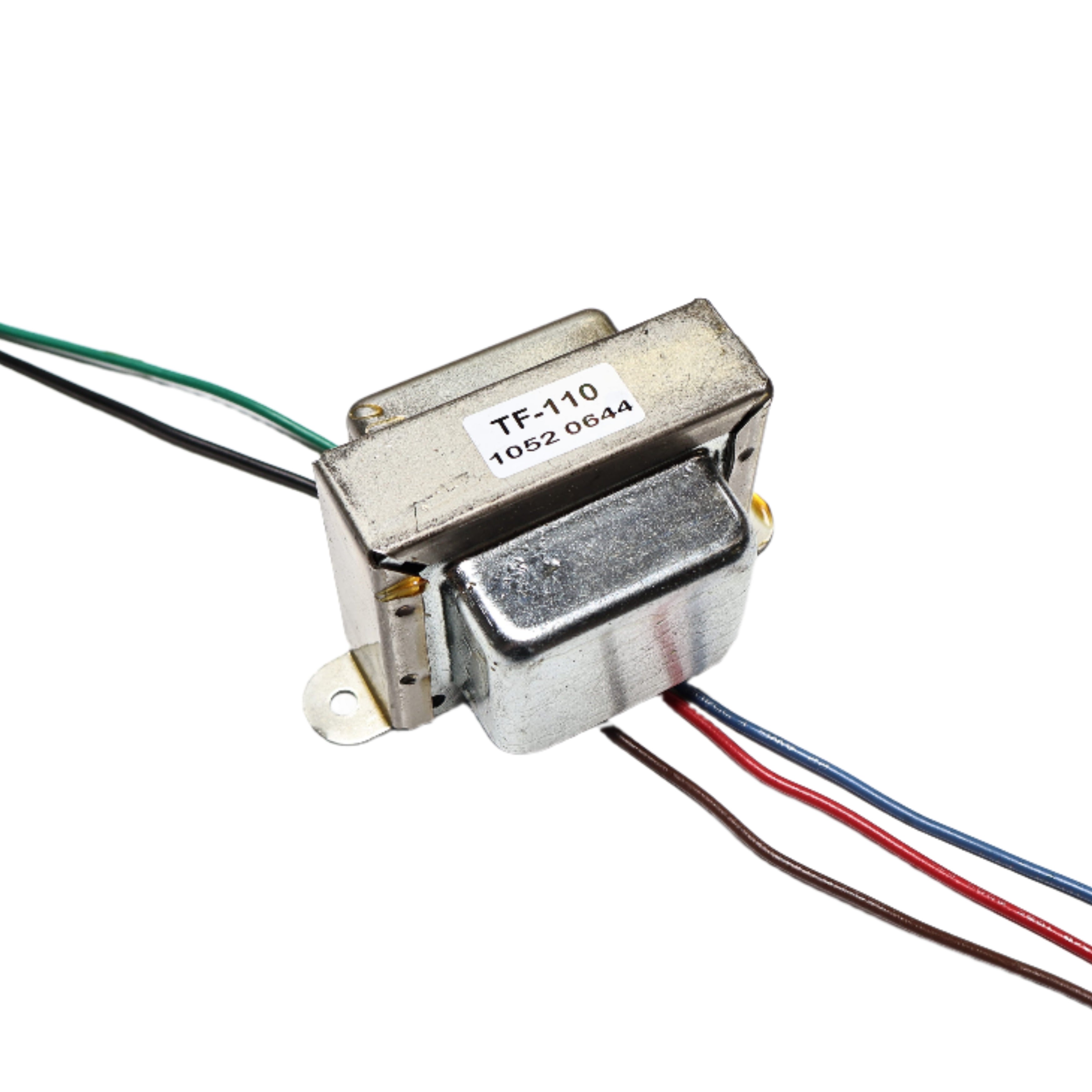

Ruby Output Transformer For Deluxe Reverb/ Ampeg Jet Style

Introducing the Ruby Output Transformer Deluxe Reverb/Ampeg Jet Style, designed for amps running 2 6V6's with an 8ohm output. With mounting centers of 3 1/8th". Expertly crafted using high-quality materials, this transformer enhances your sound with precision and efficiency. Upgrade your amp with the Ruby Output Transformer for optimal performance.

Primary (Plate to Plate): 6500 Ohms

Secondary: 8 Ohms

Freq Response ( <1 dB Roll Off): 20Hz to 20K Hz

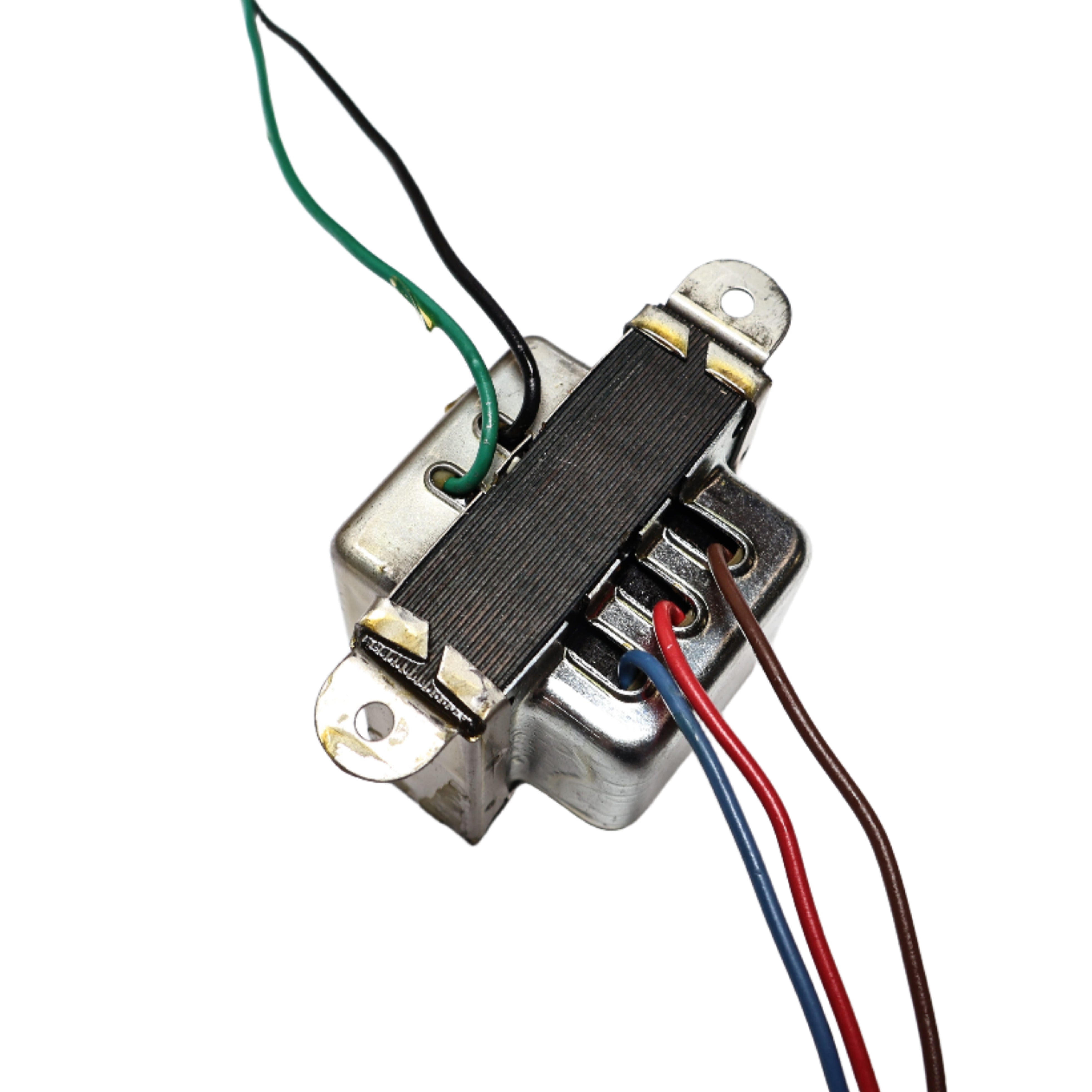

Transformer Color Code:

Primary:

Blue/ Brown = Plates

Red = B+

Secondary:

Black = Ground

Green = 8ohm
