Ruby Power Transformer, Twin/ Quad Reverb, Dual Showman, Bassman 100

$100.00
Quantity:

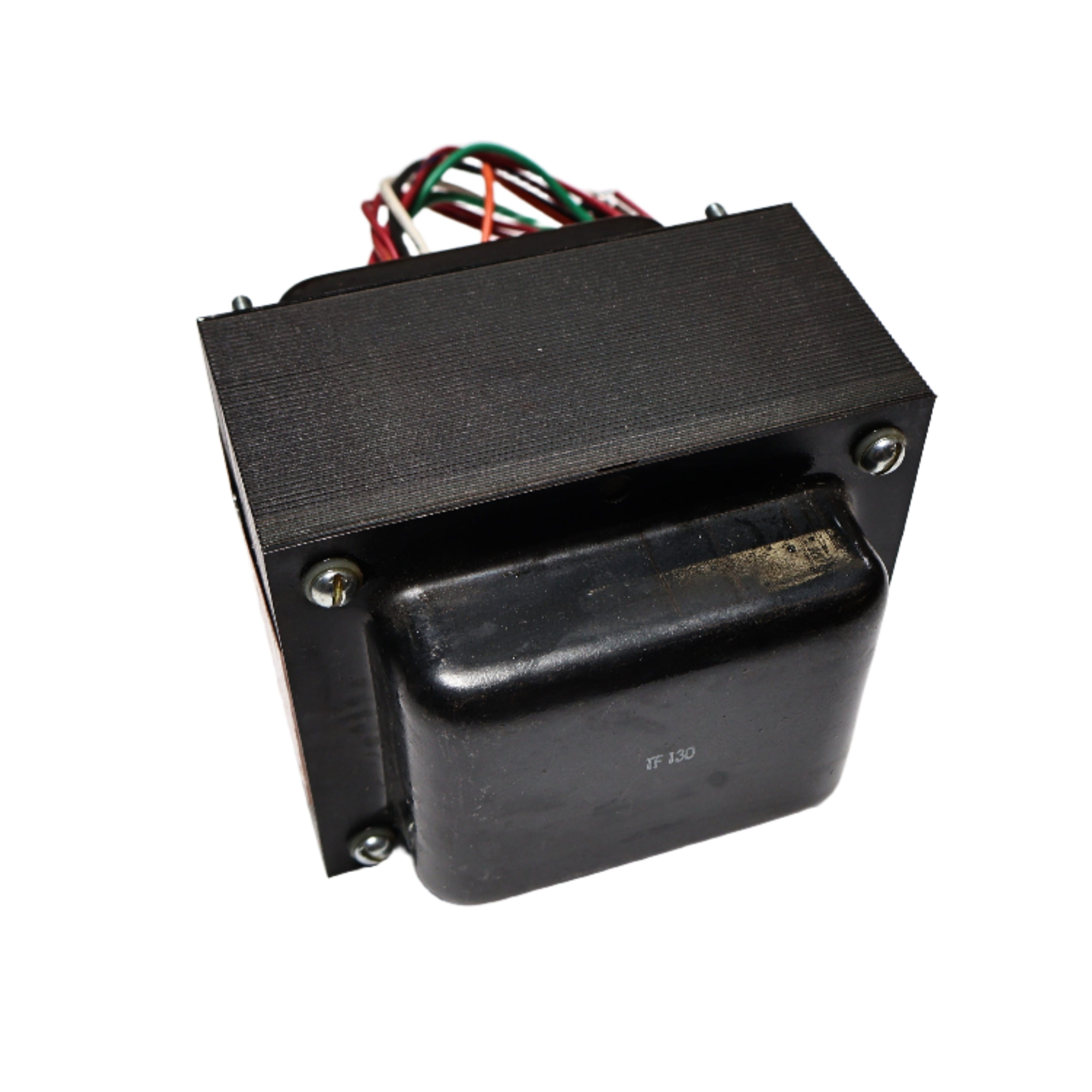

The Ruby Power Transformer is a reliable and efficient component for amps powered by 4 6L6's. With a mounting center of 3" x 3 3/4", it is a perfect fit for Twin/ Quad Reverb, Dual Showman, and Bassman 100 models. Experience improved performance and stability with this power transformer.

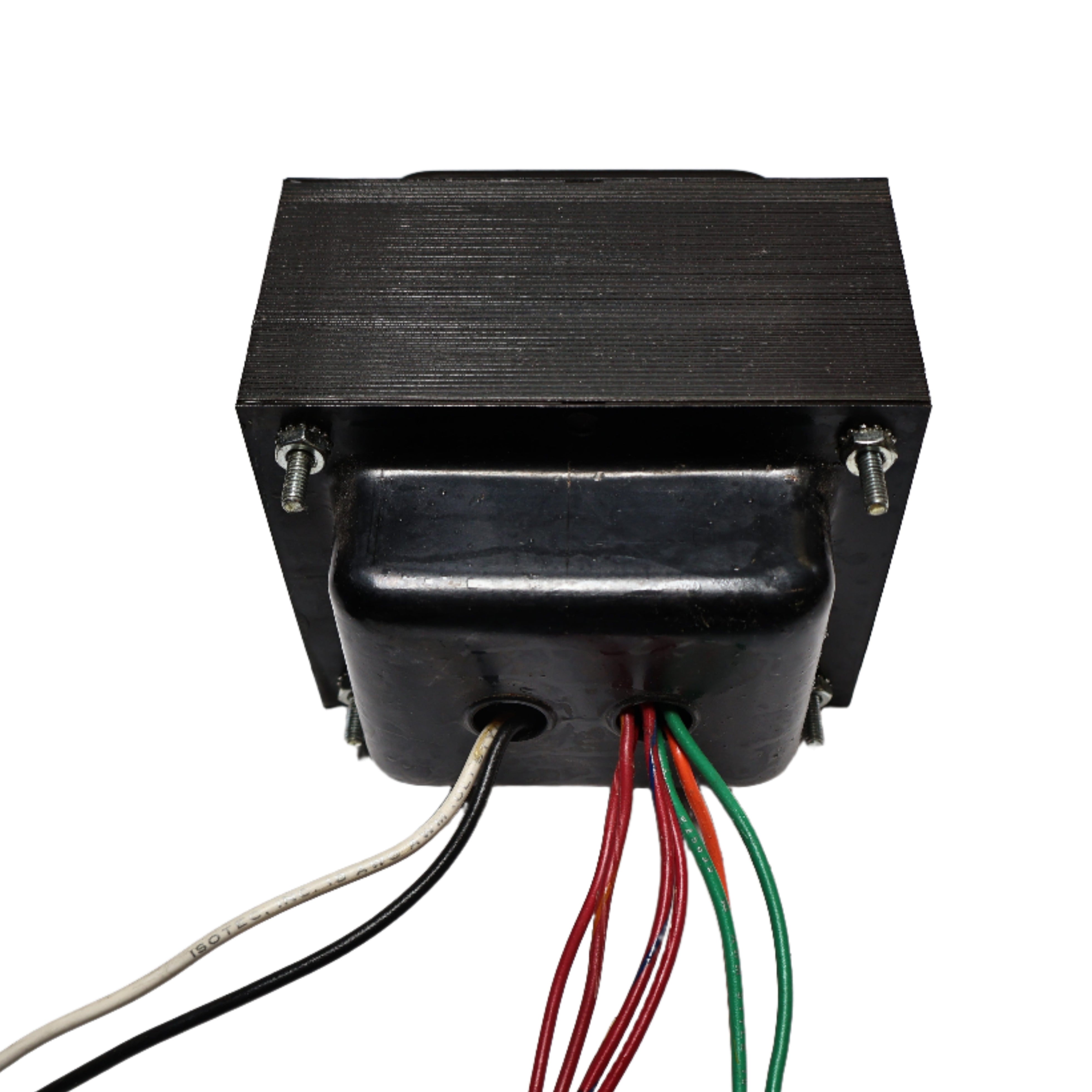

Transformer Color Code:

2x Green = 6.3V Filament (Requires 100w Resistors to ground)

2x Red = B+ (High Voltage)

1x Black = Primary (AC Connections)

1x White

1x Red/Blue = 50v Bias Supply

1x Red/Yellow = B+ Center Tap (Ground)

1x Orange = Case Ground (Ground)
